New CD Player Takes it to the Next Level

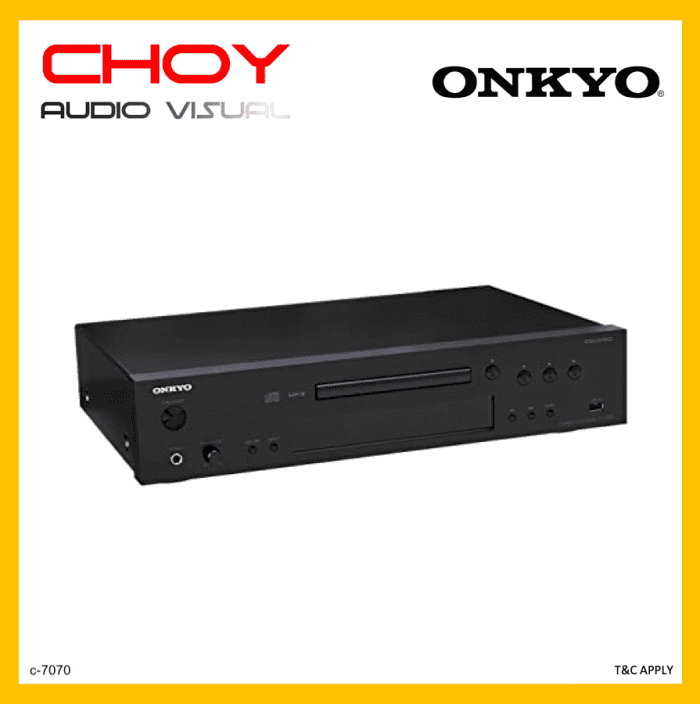

It’s difficult to imagine how you could improve the humble CD player, but Onkyo’s engineering team had plenty of inspiration. For 2011, the C-7070 is an extremely versatile and sophisticated piece of audio equipment. The unit is strengthened with vibration-damping machined-brass legs, a 1.6 mm thick flat-base chassis, an aluminum CD tray with silent mechanism, a full-floating circuit board, and a handsome aluminum front panel. In addition, the electrical system benefits from a precision clock, a pair of Wolfson® 192 kHz/24-bit DACs—one for each channel—and Onkyo’s DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry). These improvements all but eliminate noise from the source, meaning your music will sound clearer than ever. Naturally, the C-7070 plays audio discs or CD-R/CD-RWs and your favorite MP3/WMA compilation CDs. It also connects to your iPod/iPhone via the USB port, and plays music straight off a USB thumb drive. The three-stage dimmer function, gold-plated audio terminals, and headphone amplifier differential circuitry offer further evidence of Onkyo’s attention to detail. All this adds up to a player that, like your CD collection, will be around for a long time to come.
DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)
Since the advent of digital audio, signal-to-noise ratios have improved dramatically. However, the S/N ratio reflects static noise only, and takes no account of another type of noise that occurs as the byproduct of sound reproduction—dynamic noise. To reduce this type of noise, Onkyo has developed DIDRC technology for use in our hi-fi components. Despite being beyond the normal range of human hearing, frequencies above 100 kHz are susceptible to clock pulse and other forms of distortion from digital devices. Such distortion in the super-high-frequency range can generate “beat interference”, which in turn affects the character or atmosphere of the original sound. By improving linearity and reducing distortion in the super-high-frequency range, Onkyo’s DIDRC technology effectively reduces perceptible noise and delivers clearer-than-ever audio.
The C-7070 boasts a precise clocking mechanism that controls and coordinates the timing of all digital signal processes—rather like how a conductor directs and coordinates the individual instruments of an orchestra. The C-7070 uses a state-of-the-art crystal oscillator that achieves a frequency deviation of ±10 ppm—much lower than with a conventional oscillator.
Separate Wolfson® 192 kHz/24-Bit DACs for L/R Channels
High-quality Wolfson digital-to-analog converters work to optimize analog audio performance on the C-7070. The player incorporates two 24-bit WM8742 DACs. Although these DACs can process two-channel audio on a single chip, Onkyo employs separate chips for each stereo channel, to ensure the most accurate digital-to-analog conversion.
- Plays Audio CD, CD-R, CD-RW, MP3 (CD-R, CD-RW) and WMA (CD-R, CD-RW)*
- DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)
- Precision Clock for Optimal Timing of Digital Signals (±10 ppm)
- Separate Wolfson® 192 kHz/24-Bit DACs (WM8742 x 2) for L/R Channels
- Silent Disc Mechanism with Solid Die-Cast Aluminum Tray
- Floating Circuit Board Construction
- 1.6 mm-Thick Anti-Vibration Full-Flat Chassis
- Solid Aluminum Front Panel
- Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
- Independent Headphone Amplifier
- 25-Track Memory Playback
- Random and Repeat Playback Function
- 2 Digital Outputs (Optical and Coaxial)
- Analog Audio Output
- Handles Playback of Mass Storage Class USB Memory
- Machined, Gold-Plated Audio Terminals
- 3-Mode Display Dimmer (Normal/Dim/Dimmer)
- Auto Standby Function
- RI (Remote Interactive) Remote Control
*Discs should be properly finalized.
- Frequency Response: 2 Hz–20 kHz
- Signal-to-Noise Ratio: 116 dB
- THD (Total Harmonic Distortion): 0.0025%
- WHD: 435 x 101 x 306 mm
- Weight: 6.4 kg
