- Quad S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to Quad’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.

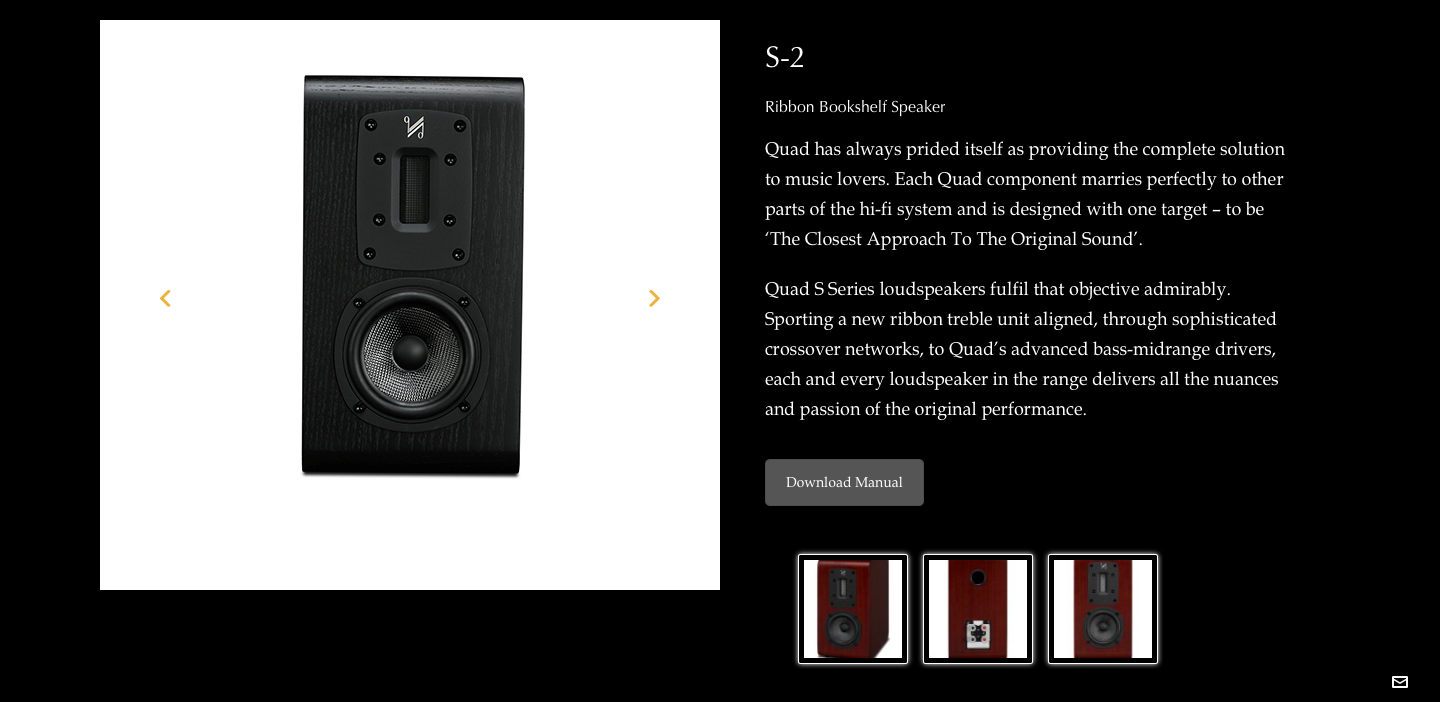

Quad S-Series S2 Bookshelf Speaker (Mahogany)
Quad S-2 S Series Loudspeaker
Quad marks its 79th year with an all-new loudspeaker range: the S Series. Each model combines advanced Kevlar-coned bass/midrange drivers with a specially designed ribbon tweeter, supplying effortless sonic expression to capture all the nuances and passion of the original performance.
“PIONEERING TECHNOLOGY ON A SMALL SCALE”
Just 330mm high, the standmount S-2 incorporates a 125mm bass/mid cone, yet still elegantly proportioned. The S-2 speakers are the larger of the two standmount speakers featured in the new Quad S series range. With an increased cabinet volume and bigger drivers, the S-2 is proportioned for the larger room in comparison to the S-1.
The S-2 sports a bespoke ribbon treble unit, delivering effortlessly extended high frequencies that are audibly superior to those supplied by typical dome tweeters. The use of a ribbon-based driver is not new to Quad; in fact, the company’s first loudspeaker was known as the Corner Ribbon, launched in 1949. Back then, ribbon drivers were delicate affairs, easily prone to burning out if overpowered.
The new ribbon unit developed for the S-2 is a thoroughly modern affair, utilising the latest techniques and materials. The ribbon itself is a sandwich construction, making it robust enough to handle high-powered amplifiers, and is fully immersed in a powerful magnetic field so that it accomplishes its dual role of being both the voice coil and the sound radiator.
As well as delivering excellent transient response and superb musical detail, the sound from this ribbon unit is smooth right up to the highest musical overtones beyond the limits of human hearing. Controlled directivity maintains this sound quality over a wide horizontal arc to cover all listeners whilst vertical dispersion is tailored to avoid floor and ceiling reflections, resulting in the purest high frequency performance at the listening seat.
This ribbon tweeter is aligned with Quad’s Kevlar-coned bass and midrange drivers through sophisticated crossover networks. While the standmount models use carefully tuned, rear-firing reflex ports to augment the bass, the floorstanders are unusual in incorporating three ABRs (Auxiliary Bass Radiators) in place of a port. These passive, rear-firing bass units support the main drivers to extend bass response down to 35Hz whilst maintaining an accurate and articulate rendition of instrument fundamentals
“CUTTING EDGE CONSTRUCTION”
Beautifully presented with rounded top edges at the front and rear, each speaker cabinet uses a sandwich construction of alternate layers of MDF and high-density particleboard to reduce panel resonance to below the level of audibility. Aesthetically, the look is classically Quad yet subtly updated, available initially in a choice of black or sapele mahogany wood veneers.
|Dimensions||35 × 40 × 35 cm|
