YAQIN MS-850 300B Three Pole Class A High Fidelity Electronic HiFi Tube Power Amplifier (Remote Control)

Home/Tube Amplifier/YAQIN MS-850 300B Three Pole Class A High Fidelity Electronic HiFi Tube Power Amplifier (Remote Control)

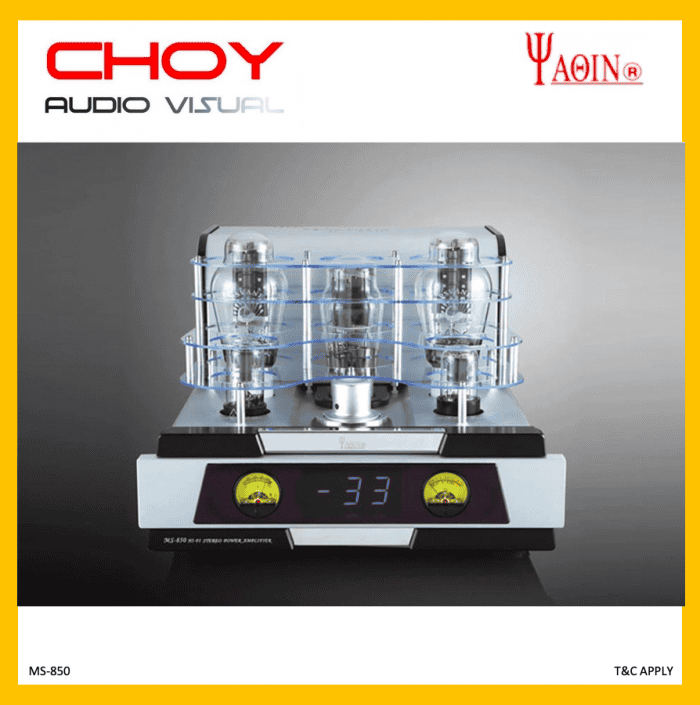

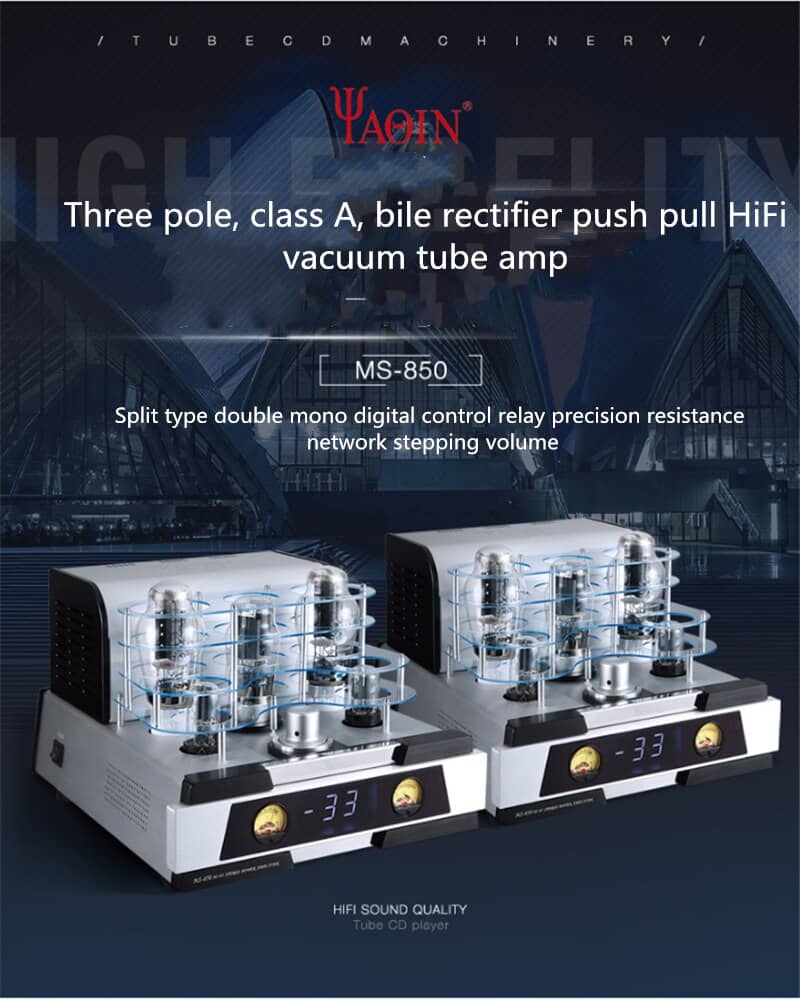

YAQIN MS-850 300B Three Pole Class A High Fidelity Electronic HiFi Tube Power Amplifier (Remote Control)

RM 15,999.00

Out of stock

Features:
1. Good separation, left and right channel split structure

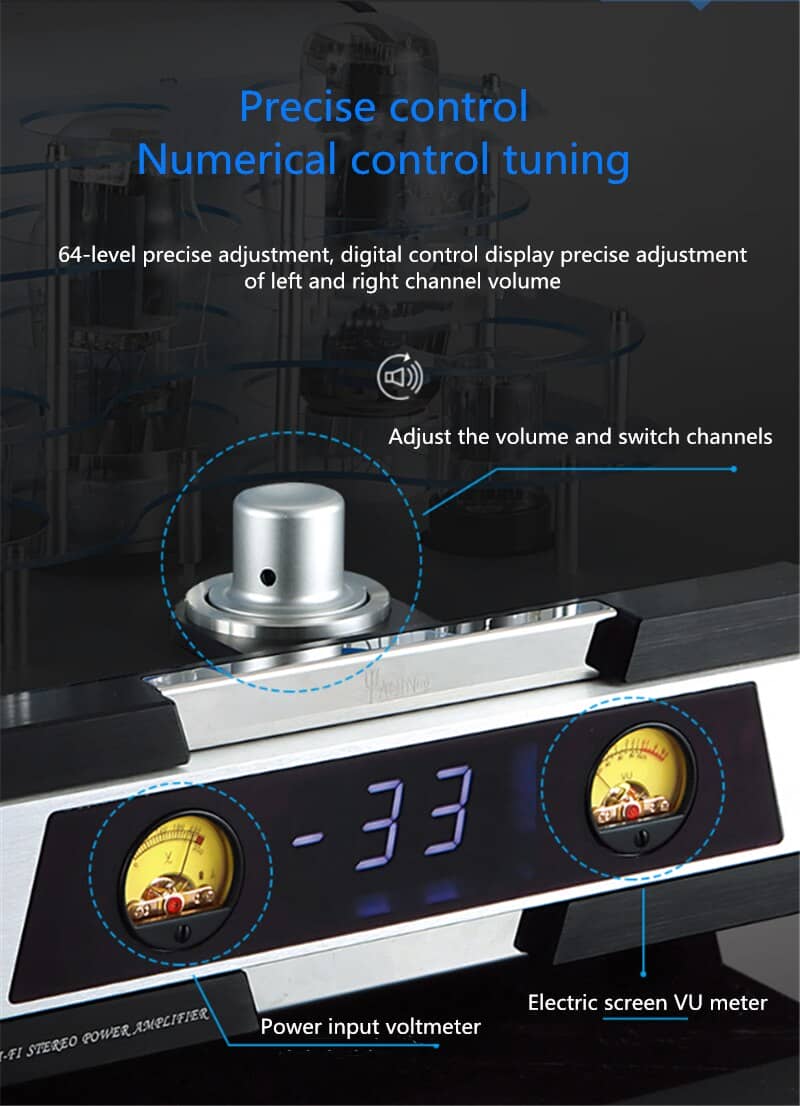

2.64 level volume adjustment, no level 1dB

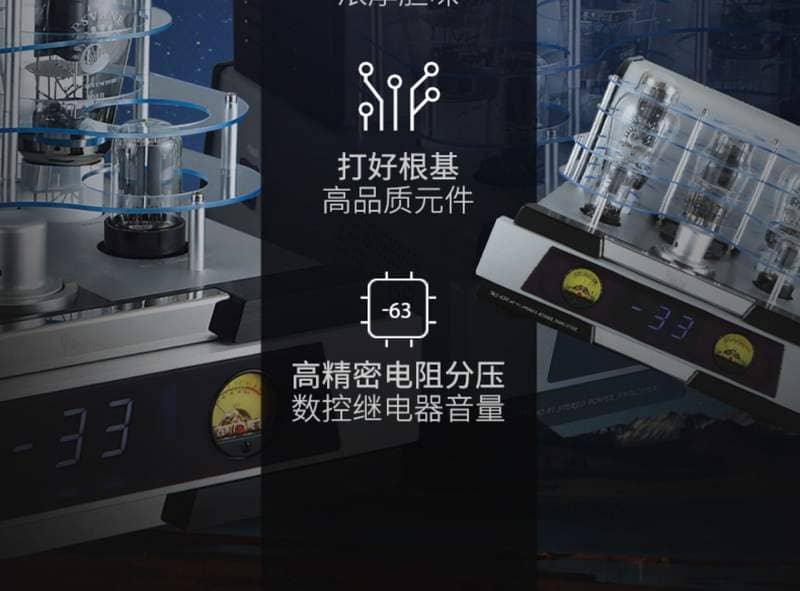

3. Relay precision resistor network control
4. Volume is accurately displayed using LED digital screen

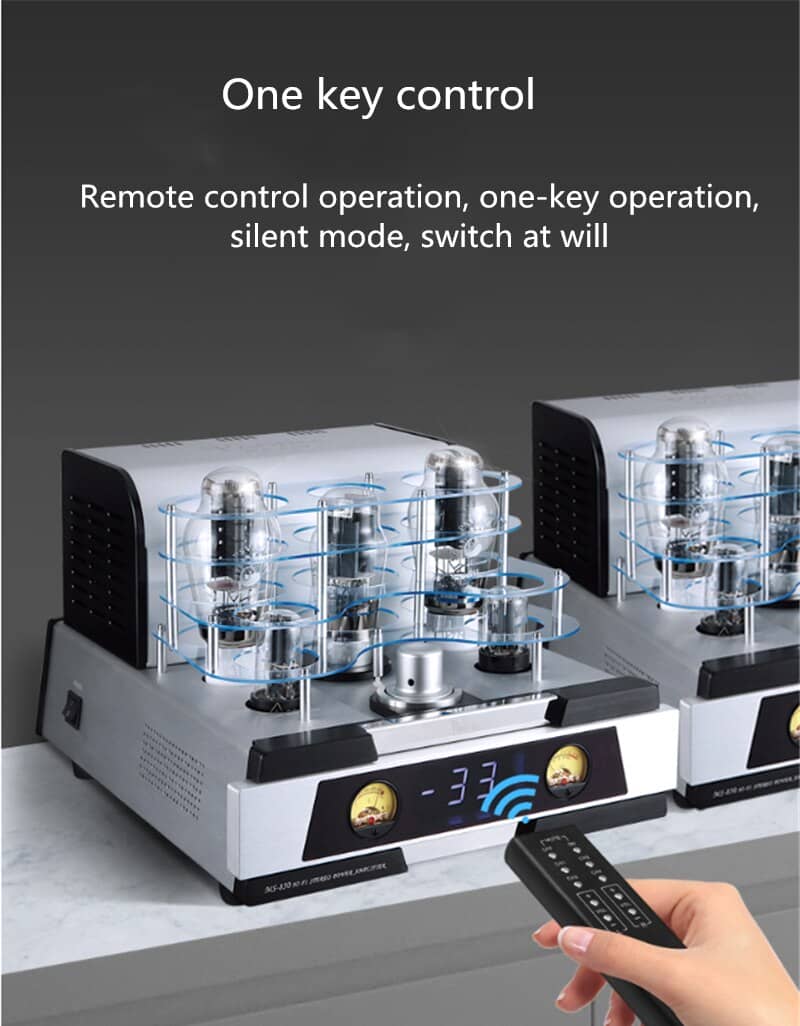

5. Remote control, switch freely

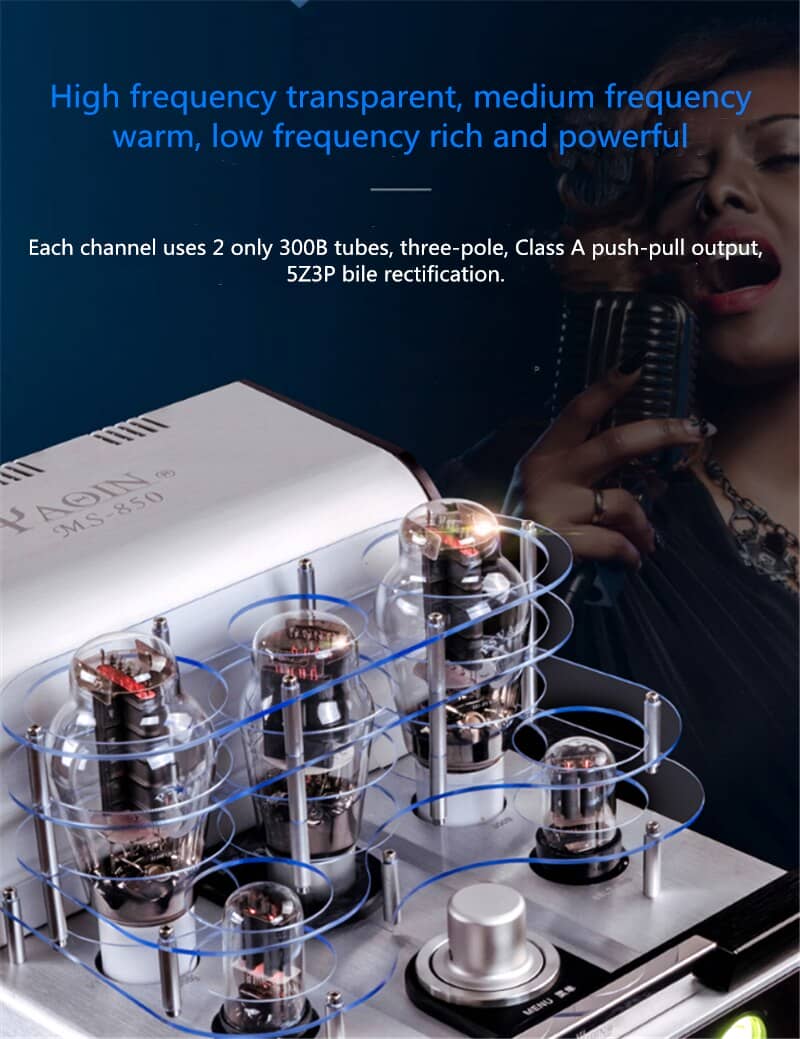

6. Each channel uses 2 300B tubes, 3rd stage, Class A push-pull output, 5Z3P bile rectifier, which makes the output impedance of this machine low and the damping characteristics are good.

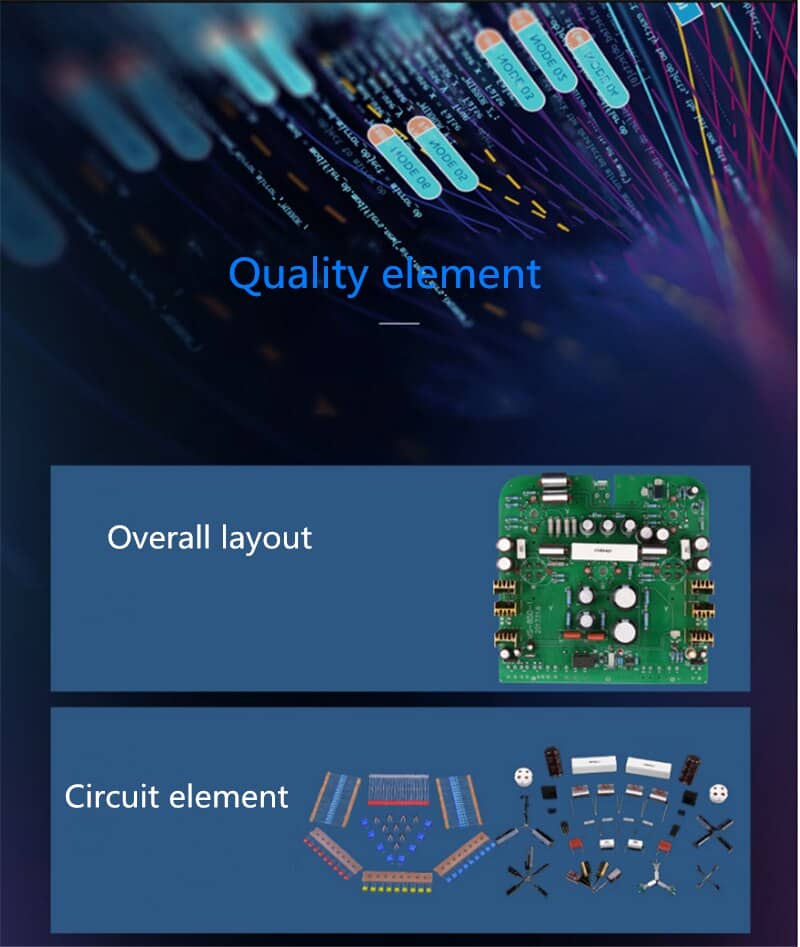

7. The layout is rigorous and reasonable. The pre-stage circuit is simple and refined.
8. Use audio PPMH capacitors and imported electrolysis for filtering and high-precision metal oxide film resistors

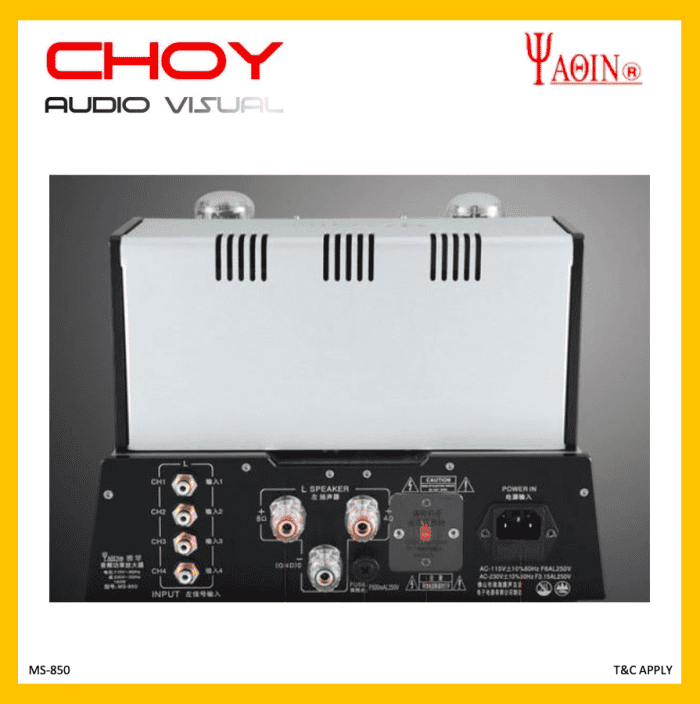

9. Signal selection channel knob (CH1/CH2/CH3/CH4)

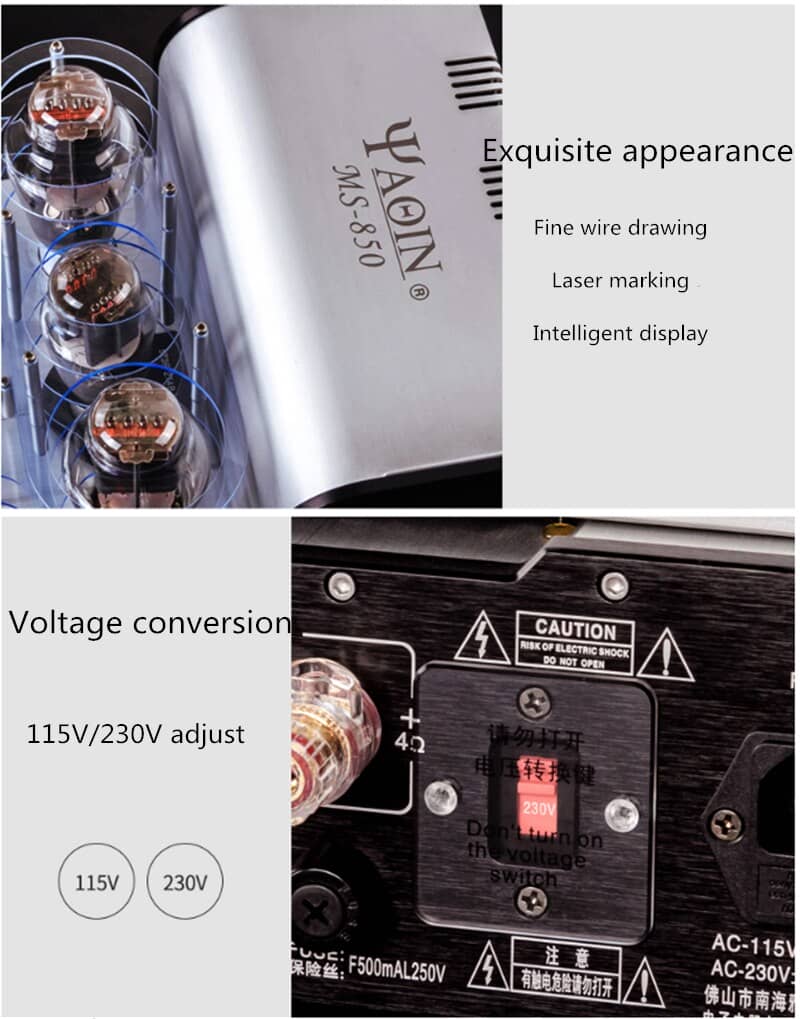

10. Voltage 115-230V can be adjusted

Specifications:
MAXIMUN OUTPUT: 24W +24W (8, THD=5%)
POWER CONSUMPTION: 142W
SNR: 94DB (A-weighted)
THE SENSITIVITY: <=300mV
Total harmonic distortion: <=1.0% (1KHz, 8, rated output 16W)
Frequency: 10Hz-64KHz (-2dB)

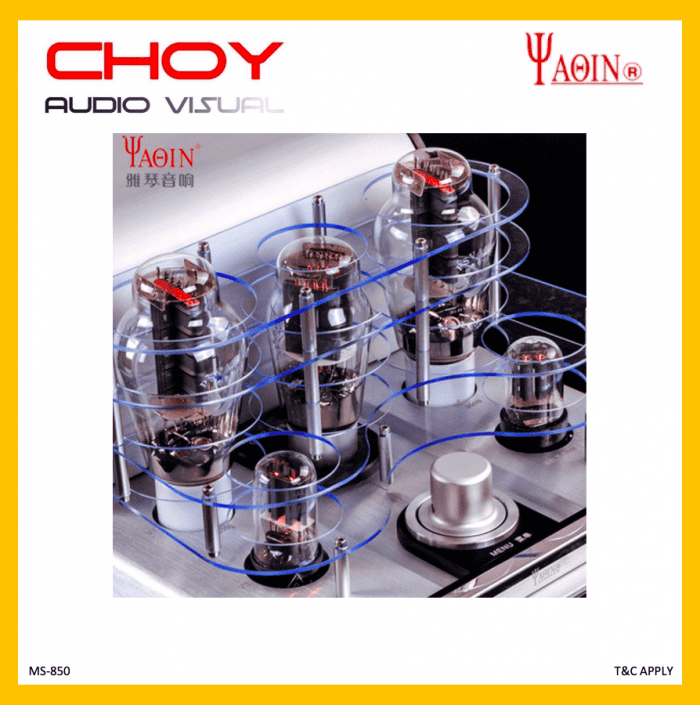

Tube: 300B*2 Russia 6n8p*2 Russia 6n9p*1 5Z3P*1
Weight: 18Kg

Out of stock

SKU: MS-850 Category: Tag:
