Description
Functional overview

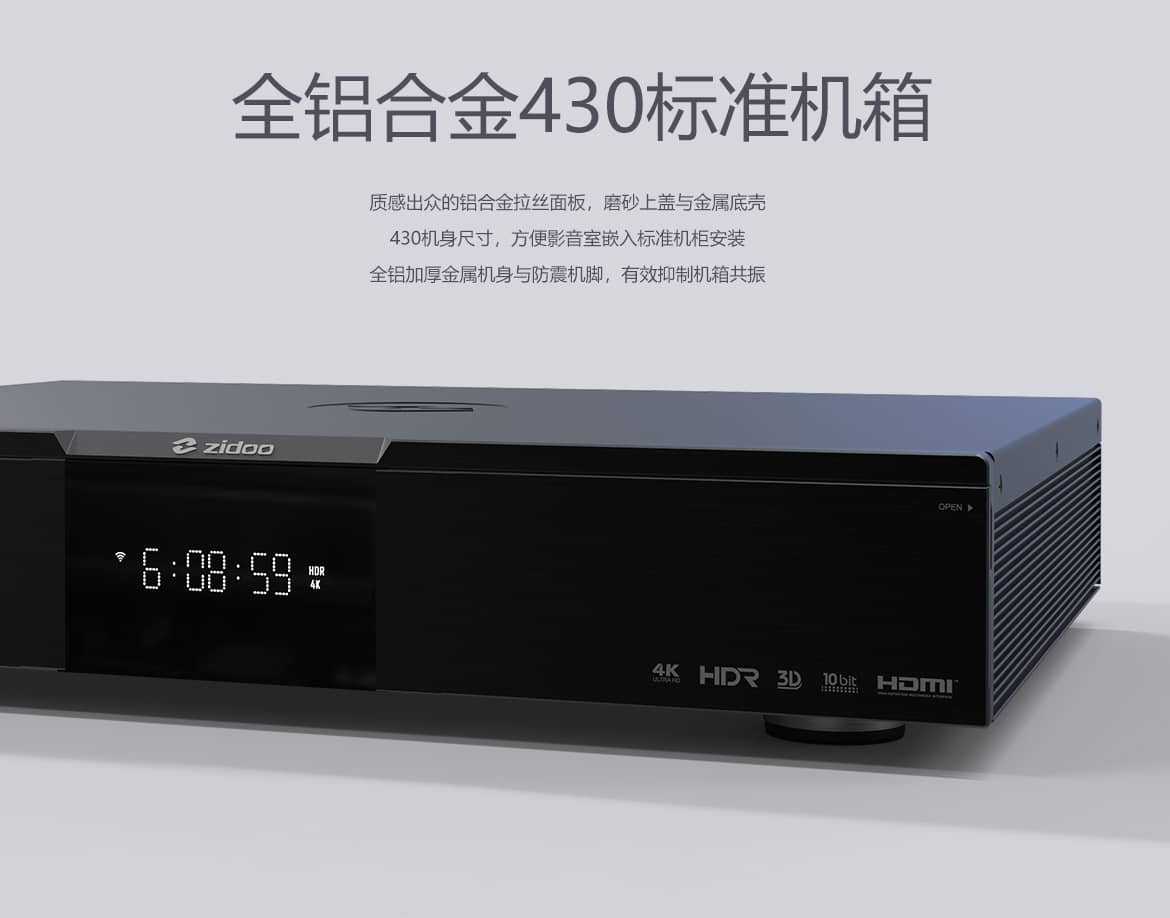

* 430MM standard cabinet size, outstanding aluminum alloy case, frosted cover and thickened bottom case;
* Realtek 1296 Quad-core 64-bit A53 processor, better bus processing capability and more efficient work;
*4G DDR4 RAM +32GB eMMC internal storage, 64-bit bandwidth, system is smoother;
*XMOS+ESS 9038 professional Hi-Fi audio decoding chip support real DSD Native pass-through;
*Customized large toroidal transformer to ensure clean and powerful power and better audio and video signal output;
* Dual HDMI audio and video separate output, enjoy 4K and HD audio at the same time without power amplifier.
*RJ-45 1000Mbps Ethernet, 802.11 AC 2T2R 867Mbps WIFI, Bluetooth 4.1;
* Multiple ports: built-in SATA 3.0*2, USB 2.0*2, USB 3.0*1, TYPE-C *1, coaxial *1, optical *1, XLR left and right balance output *1, RCA left and right channel *1, composite video output *1, infrared input *1, infrared output *1, RS232*1, HDMI OUT *2, HDMI IN 2.0*1;
* Full-function backlight Bluetooth infrared learning three-in-one remote control;
*Large LED display;
* Independent dual SATA 3.0 ports, hidden NSS patented metal HDD bays which support two hard drives up to 10TB each.*Intelligent temperature controlling dual ball bearing silent cooling fan;
* Optimized HDR to SDR algorithm, which can also accurately restore original colors when playing 4K HDR on non-HDR TVs;
* Accurate frame rate switching and automatic resolution switching (23.976, 59.94, 25, 30, 50, 60);
*4k 60p point-to-point output, wide color range HDR/HDR10, 10Bit color depth and 1.07 billion colors;
* HDR to SDR technology could accurately restore approximate HDR color on non-HDR TVs, the conversion output can retain the BT2020 color range;
*True 4K 60P, H.265/HEVC 10bit hard decoding;
* Support 4K UHD and BD Blu-ray navigation;
* Powerful subtitle functions include font change, multiple color effects, online subtitles download,SUP and ASS special effect subtitles.* Unparalleled poster wall supports fully automatic scanning, automatic classification of movies and TV series, customizable layout;
* Support native SACD, DFF, DSF, APE, FLAC, WAV and other lossless audio formats, support CUE track;
* Support to control media players by APP on same LAN, APP can acquire movie classification poster, music album classification and list, etc.* Break through the Android SRC limit, audio sampling rate supports up to 192K output;
* Thanks to the deep cooperation between ZIDOO and REALTEK,ZIDOO’s valuable experience based on REALTEK 1295 products in recent 2 years and the feedback from thousands of users. There is hundreds of optimizations on UHD 2000;
* Support NFS, SMB V2, SMB V1 multiple sharing protocols;
* Support HTTP, RS232 (controllable for turn on/off media player), Control4, CEC, IR, APP to control.
功能概述
*430MM标准机柜尺寸,质感出众的铝合金拉丝面板和机壳，磨砂上盖与加厚底壳
*全新升级版 Realtek 1296 4核64位A53处理器，更大总线处理能力，更运高算效率；
*4G DDR4 内存+32GB eMMC 超大闪存，64位内存带宽，超乎想象的系统流畅度 ；
*XMOS+ESS 9038 专业Hi-Fi音频解码芯片，支持真正的DSD Native 直通；
*定制大型环牛变压 保证洁净强劲动力源，保证了更为优质的影音信号输出；
*双HDMI音画分离输出，无需升级原有的功放，即可同时享受4K与高清音频；
*RJ-45 1000Mbps有线，802.11 AC 2T2R 867Mbps WIFI,蓝牙4.1；
*接口丰富:内置SATA 3.0*2,USB 2.0*2, USB 3.0*1, TYPEC *1, 同轴*1,光纤*1，XLR左右平衡输出*1, RCA左右声道*1，复合视频输出*1，红外输入*1，红外输出*1，RS232*1, HDMI OUT *2, HDMI IN 2.0*1；
*全功能背光蓝牙红外学习三合一遥控，遥控无死角；
*前置超大LED显示屏；
*独立双SATA 3.0接口，隐藏式NSS专利金属硬盘抽取架,可内置两块超10T大容量硬盘；
*智能温控双滚珠静音散热风扇；
*优化的HDR转SDR算法，在非HDR电视上播放4K HDR时同样能精准还原原始色彩；
*精准的帧率切换与自动分辨率切换(23.976,59.94,25,30,50,60)；
*4k 60p点对点输出,广色域HDR/HDR10，10Bit色深，10.7亿种色彩；
*HDR转SDR技术，即使在支持HDR的早期设备也能够精准还原近似HDR浓郁色彩，转换输出可保留BT2020色域；
*真4K 60P解码，H.265/HEVC 10bit硬解；
*支持4K UHD 和BD原盘蓝光导航；
*强大的字幕功能，支持任意更换字体，多种颜色效果可选，支持在线下载字幕;同时支持SUP 和ASS 特效字幕。
*无与伦比的海报墙功能，全自动扫描，自动归类系列影片与电视剧，可自定义布局；
*支持原生SACD,DFF,DSF,APE,FLAC,WAV等无损音频格式，支持CUE分轨;
*支持手机APP全局控制局域网内的播放器，手机APP可拉取电影分类海报，音乐专辑分类、列表等，无需打开显示设备聆听音乐；
*突破安卓SRC限制，音频采样率最高支持192K输出；
*得益于ZIDOO与REALTEK的深度合作，及ZIDOO基于REALTEK1295的产品推出将近两年的宝贵经验，数十万用户的使用反馈。ZIDOO将数百项优化体现在了UHD 2000上；
*支持NFS,SMB V2,SMB V1 多种共享协议；
*支持HTTP,RS232(可控制开关机),Control4 ，CEC、IR、手机APP多种方式进行控制;
