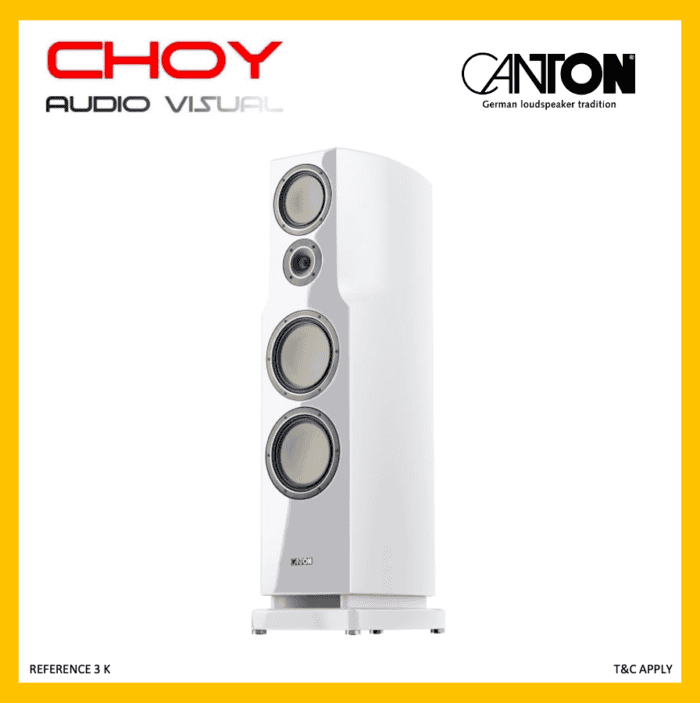

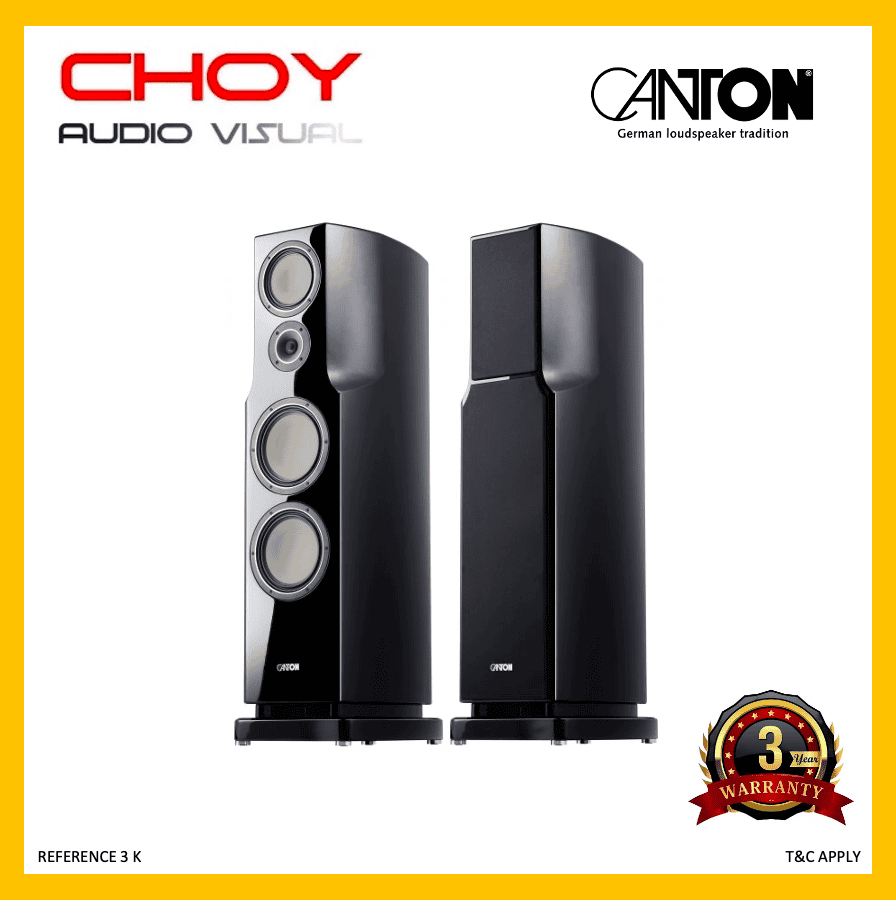

Canton Reference 3K Loudspeaker

RM 92,970.00

Note :

Made in Germany

3 Years Warranty



Get it with 0% Credit Card Instalment Plan Up to 18 months

Maybank , Public Bank, CIMB Bank Credit Card Instalment Plan up to 18 months – Lazada / Shopee

AFFIN, Ambank, Citibank, HSBC, OCBC , RHB Credit Card Instalment Plan Up to 12 months (CAV)

SKU: Reference 3K (Black Lacquer) Categories: , Tag:

Description

Reference_K_Mitteltoener

Ceramic-tungsten technology

The membranes of the K Series are manufactured in an elaborate process. Up to 20 % of the existing molecular structure of the aluminium cone is transformed into a ceramic structure and refined with tungsten particles. The result is a membrane with an optimum ratio of rigidity to weight and improved inner damping.

Reference_3K_schwarz_Anschluesse58b7fc295764b

Connection terminal

The high quality connection area with four gold-plated screwclamp terminals is suitable for cable diameters up to 10 mm2 and special cable shoes. This provides secure connections Crossovers with long-term stability.



Reference_3K_schwarz_links_oben58b7fc2911e34

Solid cabinet design

The acoustically optimised cabinet with its organic curved baffle offers significantly improved dispersion characteristics. The solid construction of high quality 50 mm multi-layer laminate sets new standards in terms of stability. The characteristic bow shape of the cabinet is created from solid material in a special process.

Reference_K_Frequenzweiche_158b7f82e956a2

Crossovers

The crossovers of the Reference 1 K and 3 K speakers discreetly separate the bass, mid-range and treble ranges. Only selected components with no tolerance are used in the manufacture of their low-resonance circuit boards. Here it is not just a matter of separating an audio signal but also of creating sounds.

Reference_K_Sockel58b7f82e486eb

Bass-Guide

The floorstanding loudspeakers of the Reference K Family operate with the new Bass-Guide® bass reflex system. Vibrations are directed away from the cabinet and flow noise is reduced. The usable inner volume of the loudspeaker is maximised while the external dimensions remain the same and there is greater flexibility in the set-up location. The distance from walls or corners no longer has much impact.



Reference_K_Cantolink_400

Exclusive cabling

Cabling is reduced to a minimum. The cables themselves are specially developed for the Reference K loudspeakers. The design, with its special core and six twisted individual conductors per phase, ensures optimum sound transmission from the connection terminal to the chassis.





Reference_1K_schwarz_AB58b7fe307f2d4

Surfaces

The elegant, high gloss, “piano finish” surface is applied and polished in a 12- stage process. It gives the cabinets of the Reference K Series a sensation of extraordinary depth. Acoustically optimised, two-part fabric covers with magnetic fastenings complete the exclusive look.



Reference_K_Auftritt_pianofinish

Manufacturing quality

We develop and manufacture the loudspeaker systems of our Reference K Series in our own workshops. This is the only way we can satisfy the quality standards required, eliminate fault tolerances and achieve the high sound perfection of our premium products.



Type High-End floorstanding speaker
Engineering Principle 3-way, Bass reflex system
Nom. /Music power handling 350 / 600 watts
Frequency response 18…40.000 Hz
Crossover frequency 200 / 3.000 Hz
Woofer 2 x 219 mm (8,6″), ceramic tungsten (Wave-surround)
Midrange 1 x 174 mm (6,8″), ceramic tungsten (Wave surround)
Tweeter 1 x 25 mm, Aluminium oxyd ceramic
Nominal Impedance 4…8 ohms
Special Features terminal with level adjustment
base construction with Bass-Guide®
high-end cable system
gold plated bi-wiring/bi-amping screwclamp terminals
DC-technology
fabric grill with magnetic mount
Warranty 3 years
Dimensions (WxHxD) W: 29.5 cm (11.6″) | 33.5 cm (13.2″) with base
H: 116 cm (45.3″) with base and equipment feet
D: 45 cm (17.7″) | 49 cm (19.3″) with base
Weight 56 kg
Packaging 64 x 129 x 44,5 cm (25.2″ x 50.8″ x 17.5″)
Weight including packaging 64.4 kg

Additional information

Colour

Black Lacquer, White Lacquer
